Zambelli

Standing-seam roofing RIB-ROOF 465 profiled sheet, copper

400661 · Roof systems

Ref. 400661

Made to order

Quantity

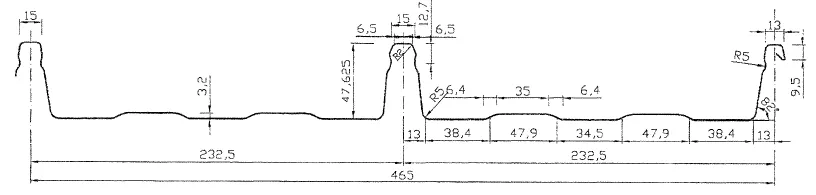

The RIB-ROOF 465 profiled sheet, 465 mm wide with a rib height of 48 mm (the system’s classic rib since 1977), is laid on concealed sliding clips without through-holes in the roof. Copper sheets gradually darken and develop a noble green patina, accentuating the architecture for many decades. Sheets are made to the size of the project and suit roofs from 1.5° and facades.

Specifications

Brand
Zambelli, Германия
SKU
400661
Manufacturer
Zambelli RIB-ROOF (Germany)
System
RIB-ROOF 465
Type
standing-seam profiled sheet with sliding seam
Installed (cover) width
465 mm
Rib height
48 mm
Min. roof pitch
1,5°
Sheet length
per project
Sheet shapes
straight and curved
Fastening
sliding clips without perforating the roofing
Certification (steel, aluminium)
abZ Z-14.1-345 / Z-14.1-346, DIN EN 14782
Material and thickness — article number
natural copper (DIN EN 1172) 0.60 mm — 400661
Weight, kg/m²
7,70
Options
anti-condensation fleece (up to 900 g/m²), acoustic fleece (−6 dB rain noise), tapered and curved rolling, on-site profiling
