Zambelli

Standing-seam roofing RIB-ROOF 465 profiled sheet, aluminium

400370 · Roof systems

Ref. 400370

Made to order

Quantity

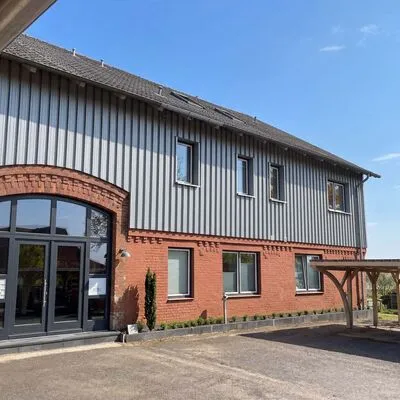

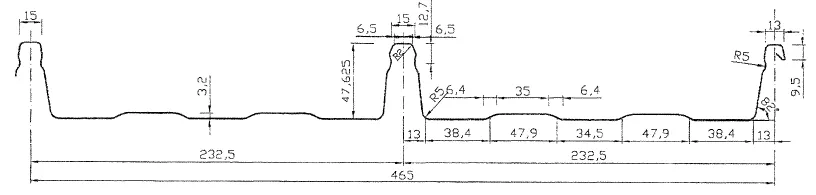

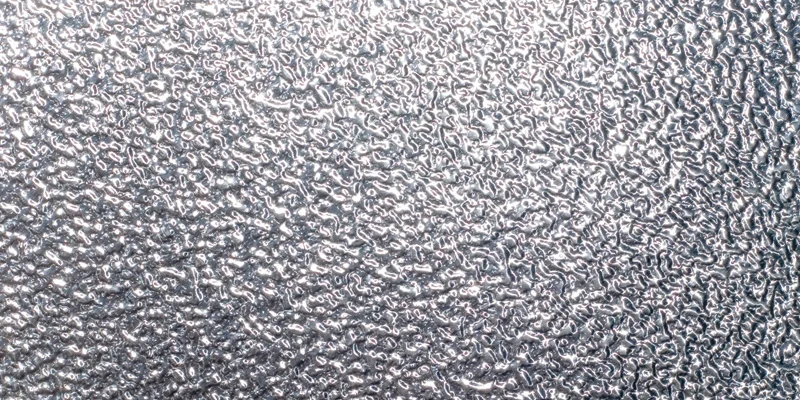

The RIB-ROOF 465 profiled sheet, 465 mm wide with a rib height of 48 mm (the system’s classic rib since 1977), is laid on concealed sliding clips without through-holes in the roof. Aluminium sheets are lightweight, do not rust and suit coastal and industrial zones; they are supplied smooth, embossed “stucco” or painted. Sheets are made to the size of the project and suit roofs from 1.5° and facades.

Specifications

Brand
Zambelli, Германия
SKU
400370
Manufacturer
Zambelli RIB-ROOF (Germany)
System
RIB-ROOF 465
Type
standing-seam profiled sheet with sliding seam
Installed (cover) width
465 mm
Rib height
48 mm
Min. roof pitch
1,5°
Sheet length
per project
Sheet shapes

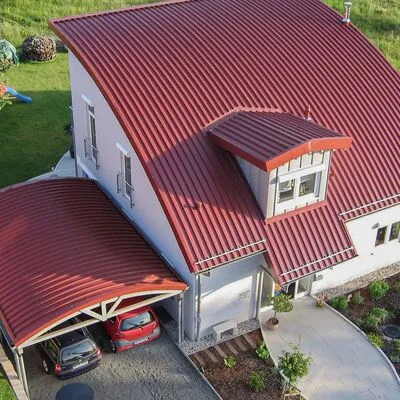

straight and curved
Fastening
sliding clips without perforating the roofing
Certification (steel, aluminium)
abZ Z-14.1-345 / Z-14.1-346, DIN EN 14782
Material and thickness — article number
natural aluminium, smooth or stucco 0.70 mm — 400370; natural aluminium, smooth or stucco 0.80 mm — 400380; natural aluminium, smooth or stucco 0.90 mm — 400390; natural aluminium, smooth or stucco 1.00 mm — 400310; aluminium stucco with protective coating on both sides 1.00 mm — 400810; aluminium with polyester coating 25 µm 0.70 mm — 400470; aluminium with polyester coating 25 µm 0.80 mm — 400480; aluminium with polyester coating 25 µm 0.90 mm — 400490; aluminium with polyester coating 25 µm 1.00 mm — 400410
Alloy
EN AW 3004 / 3005 / 3105 (EN 573-3)
Weight, kg/m²
natural 2.71 / 3.09 / 3.48 / 3.87; coated 2.86 / 3.25 / 3.64 / 4.03 (0.7 / 0.8 / 0.9 / 1.0 mm)
Colours
RAL 3009 oxide red, RAL 7016 anthracite grey, RAL 7037 dust grey, RAL 8004 copper brown, RAL 8014 sepia, RAL 8023 orange brown, RAL 9006 white aluminium, RAL 9007 grey aluminium, RAL 9010 pure white; other RAL colours to project requirements
Options
anti-condensation fleece (up to 900 g/m²), acoustic fleece (−6 dB rain noise), tapered and curved rolling, on-site profiling
