Acoustic panels PFB PVC Tech Wood
2201-320 · Wall panels
24 variants
Made to order
Quantity

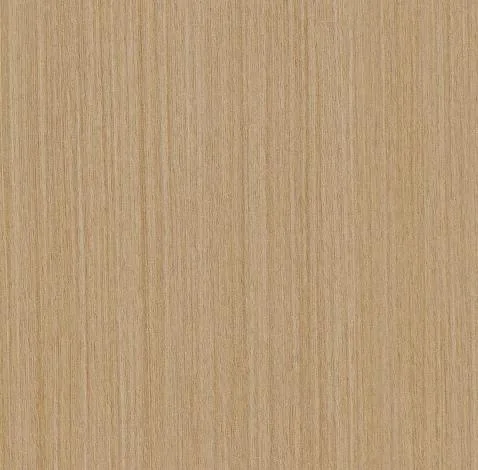

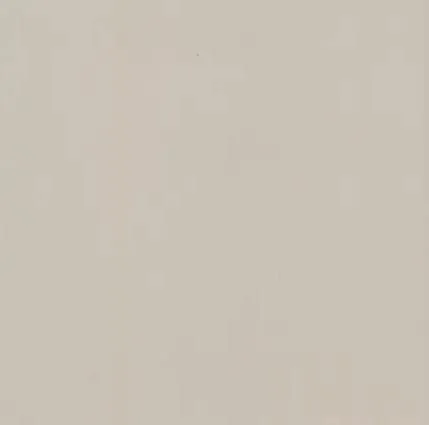

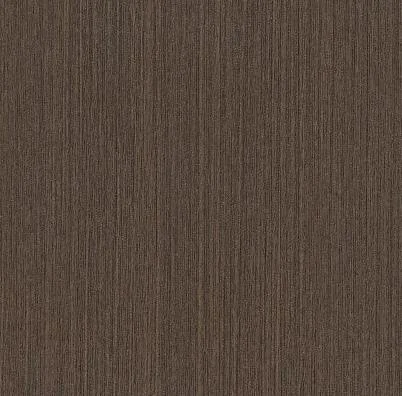

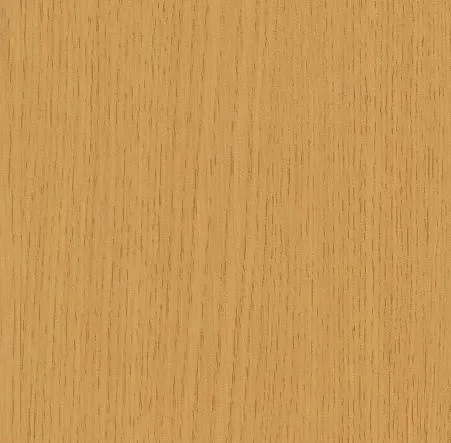

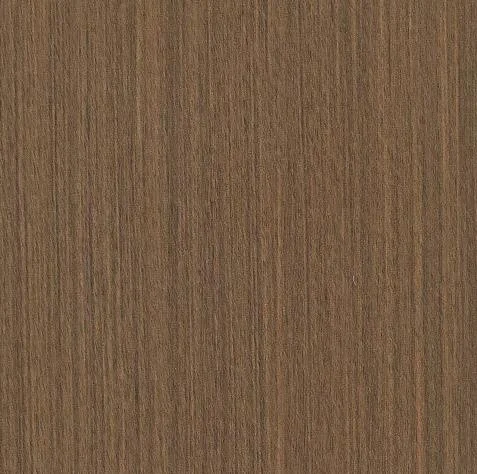

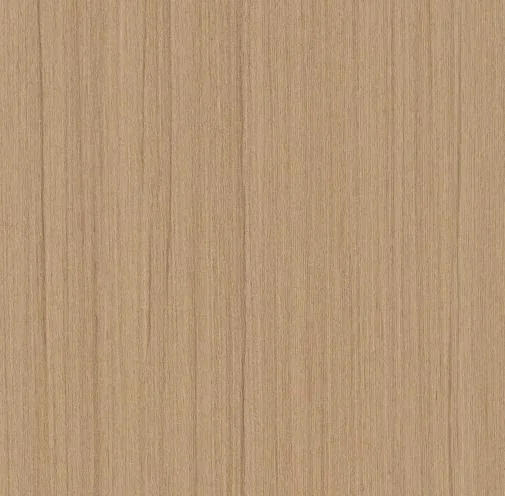

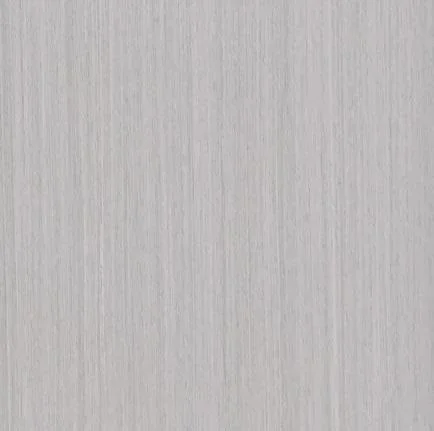

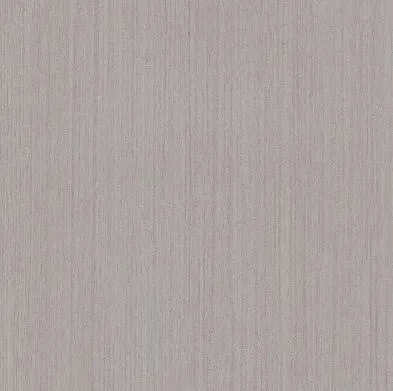

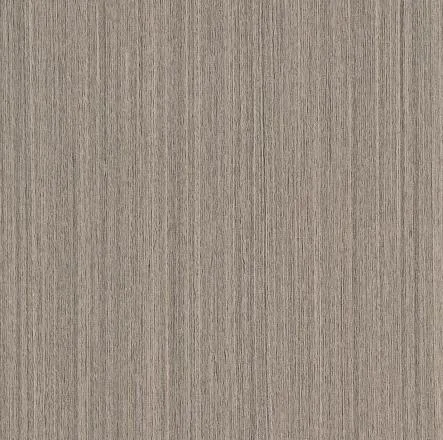

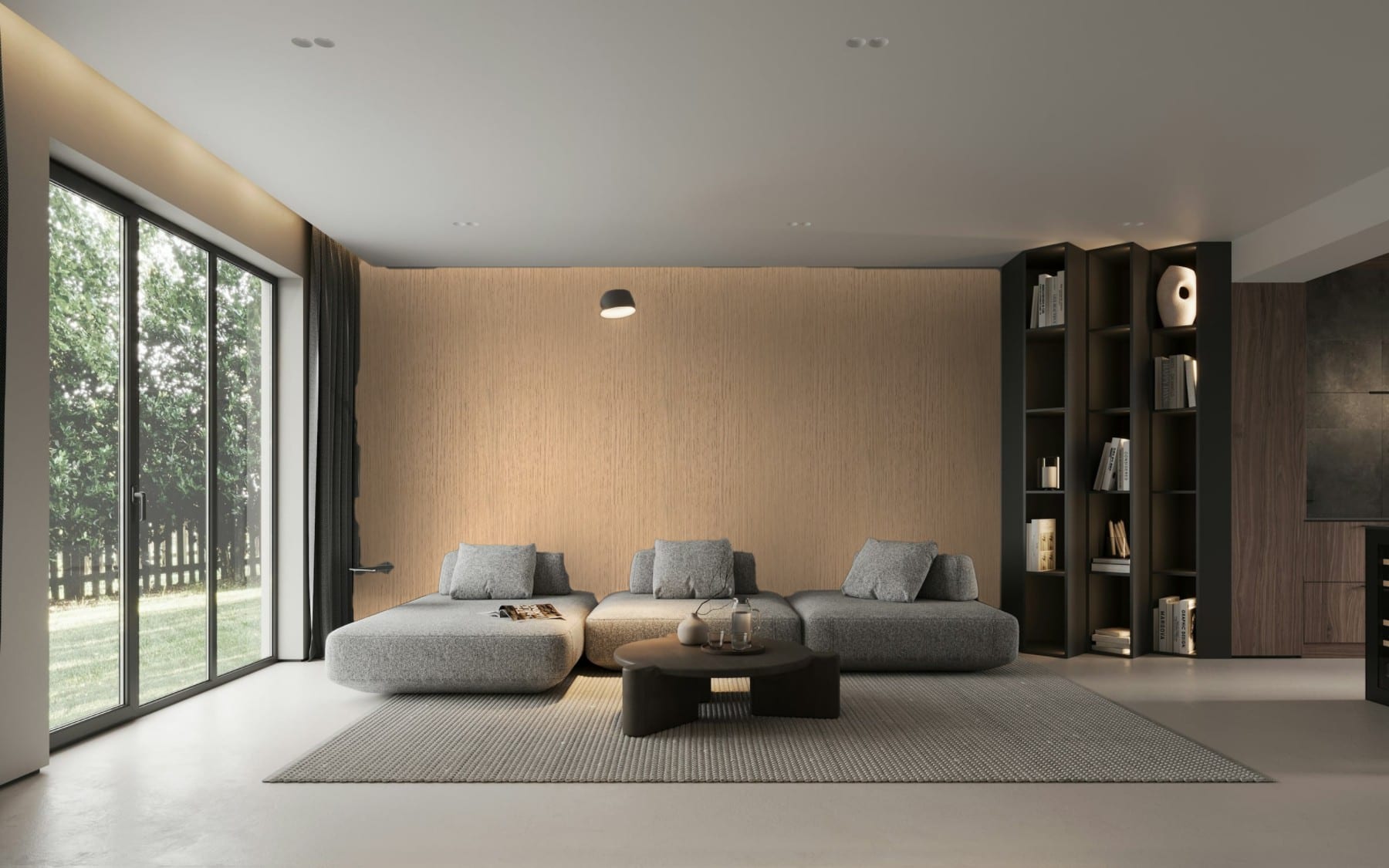

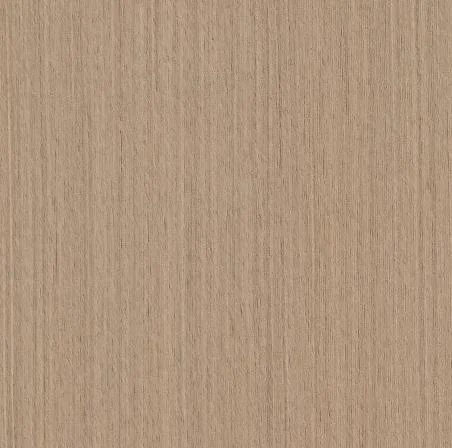

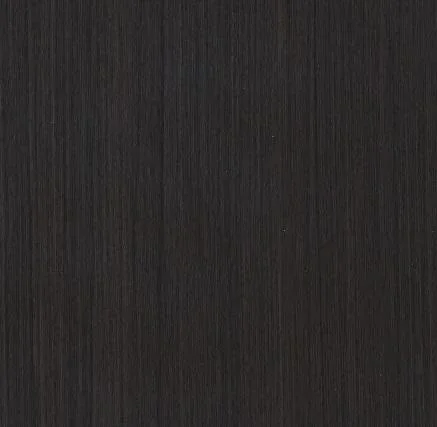

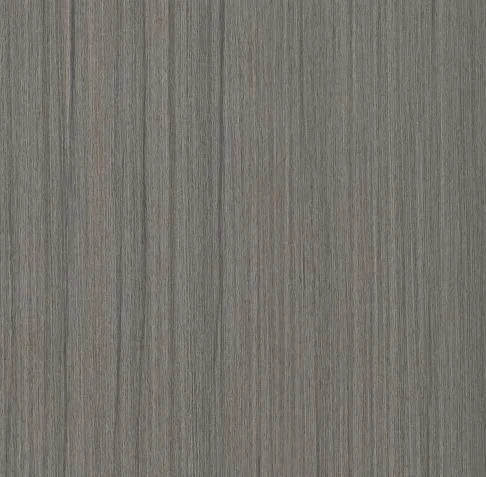

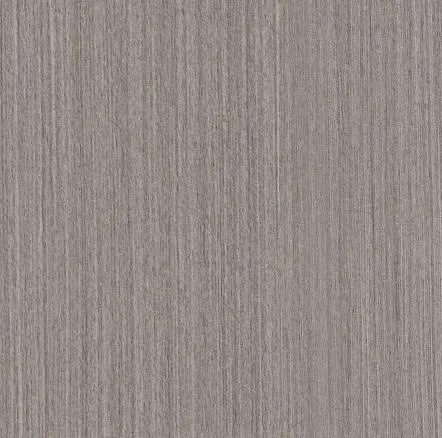

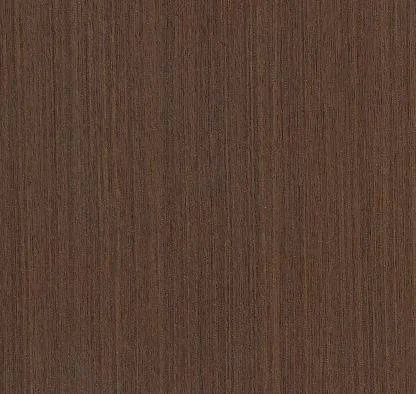

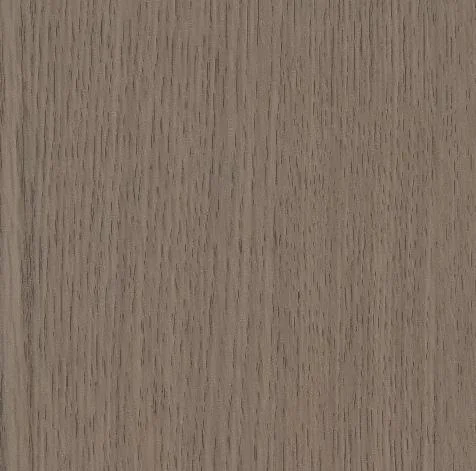

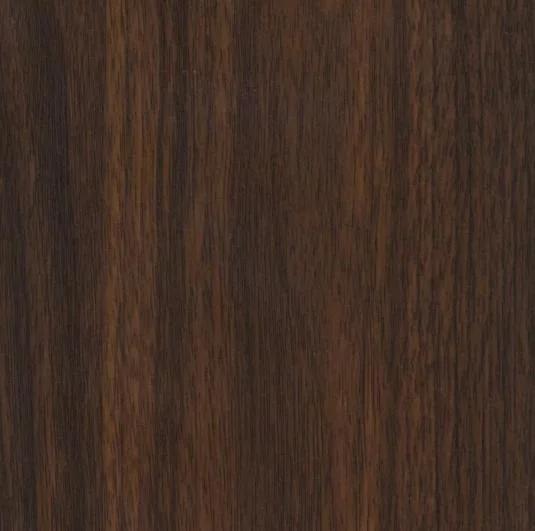

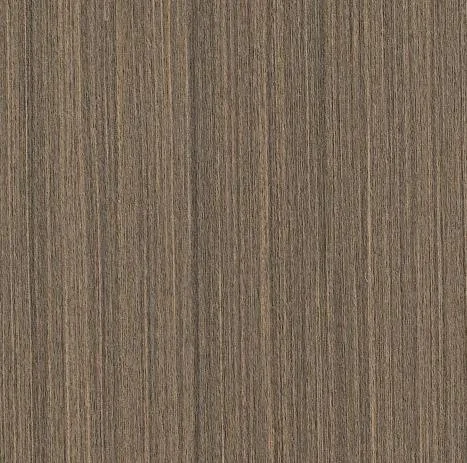

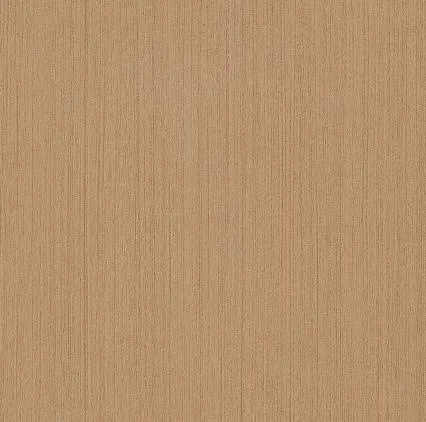

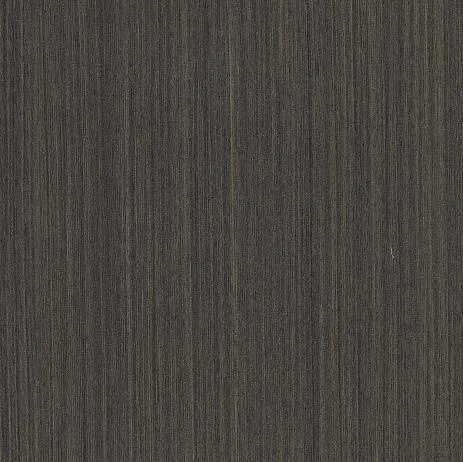

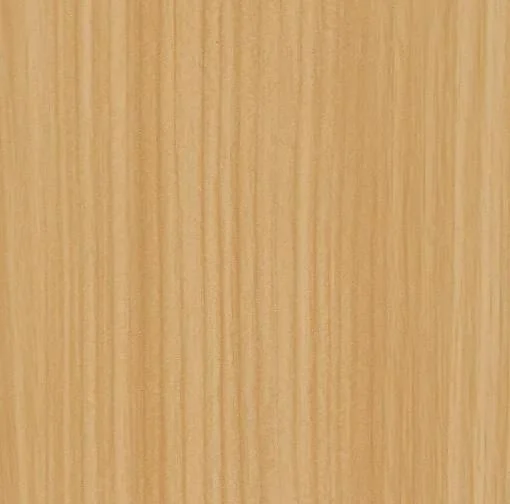

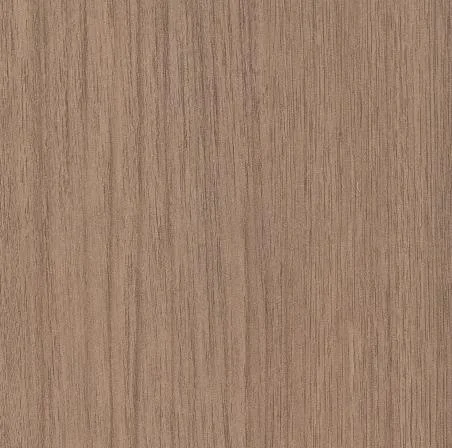

Thin acoustic panels made of polymer fibre in PVC film, “Tech Wood” series: reconstituted veneer (tech wood) with an even wood pattern.
Specifications
- Brand
- Huamei, Китай
- SKU
- 2201-320
- Finish
- ПВХ-плёнка — реконструированный шпон (tech wood) — ровный древесный рисунок
- Size
- 600 / 1200 × 2400 / 2700 мм; длина до 3000 мм
- Finish
- PVC film — reconstituted veneer (tech wood) — even wood pattern
- Base
- polymer fibre board (polyester fibre + polypropylene)
- Thickness
- 5 / 8 mm
- Size
- 600 / 1200 × 2400 / 2700 mm; length up to 3000 mm
- Weight
- 1.8 kg/m² (5 mm), 2.6 kg/m² (8 mm)
- Sound absorption
- NRC 0,85
- Fire class
- B1 (EN 13501-1, GB 8624)
- Properties
- formaldehyde-free, moisture-resistant, does not grow mould, heat resistant up to 120 °C
- Installation
- glued to a prepared wall; corners bend at 90°, curved surfaces are possible
- Certificates
- SGS, ISO 9001, CE
- Country of origin
- China
